Application
F4400: operating range 300 mm
A compact and robust ionising air nozzle with high performance to neutralise and clean small surfaces and objects with a 90° jet angle to the nozzle.

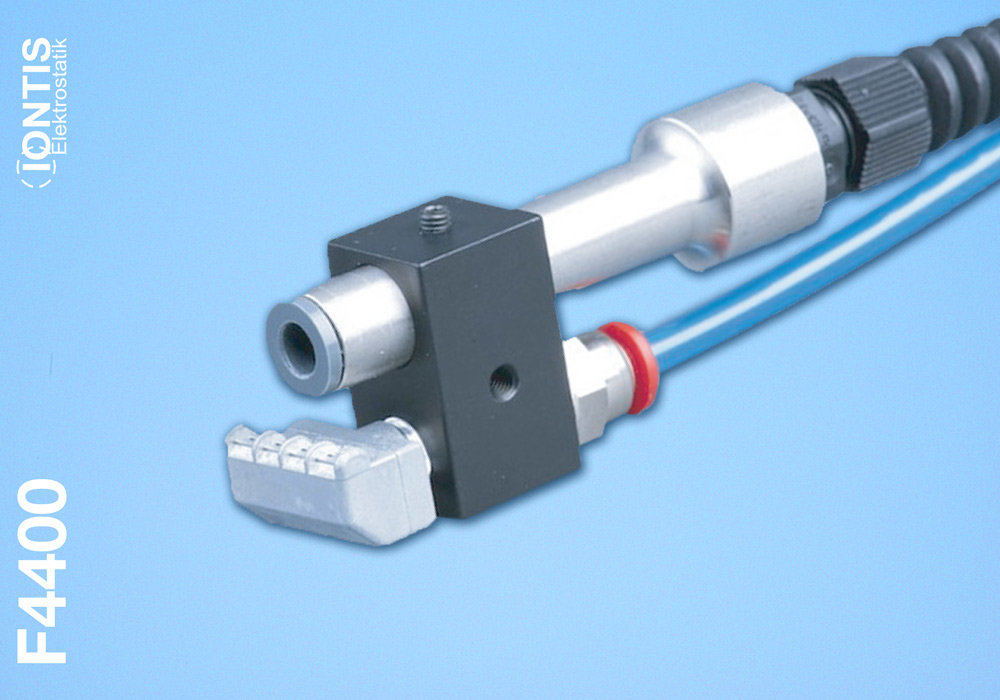

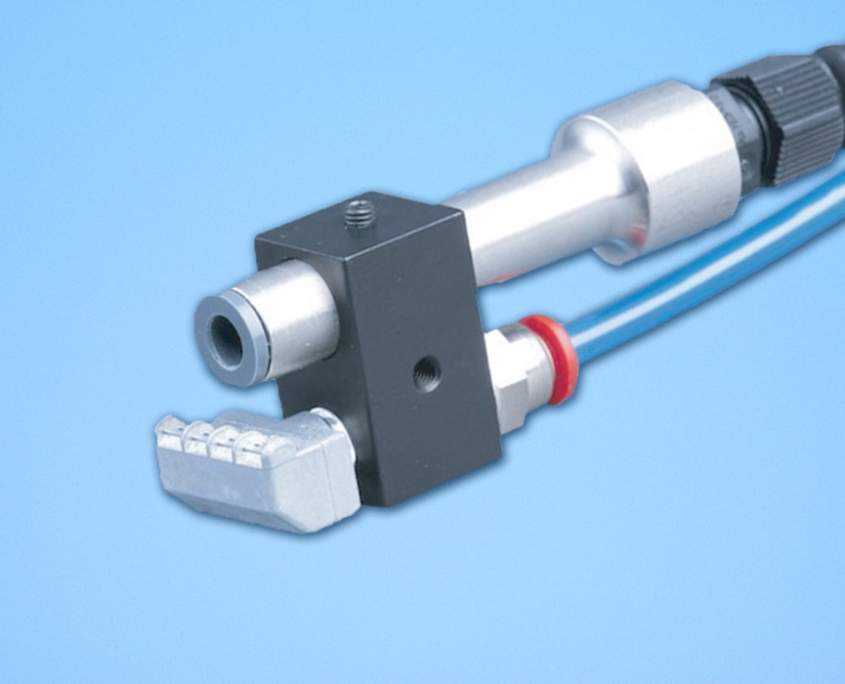

F4400 Fan-Shaped Nozzle 90°
The space saving Flat-jet Nozzle with 90° beam angle.
Specialities
The main feature of the F4400 is the sophisticated nozzle head, offering advantages with its 90° jet angle at tight installation situations and also supplying a fine fan-shaped air stream and, is thus very popular in applications with neutralising cleaning and separation of sheet material.
+49 7628 35 94 064
We gladly help you to solve your problem.
F4400 Specification
- Working range (ideal) 25 – 50 mm, up to max. 150 mm
- Case: 10mm stainless steel tube with PVC-insulated tip
- Resistively coupled tungsten emitters
- Galvanised nozzle head with black anodised case
- Air connection: up to 8 Bar max., optimal range app. 2 bar at 150 l/min airflow and 1.3N thrust
- Shockless design
- Critical parts encapsulated in epoxy resin
- Cable: 2 m screened HT cable (up to 10 m available on request)
- M12 screw thread at tube perimeter
- Screw and screw nuts for mounting are supplied
Please note: This is an AC ioniser and unlike the 24V DC counterparts necessarily requires an additional AC Highvoltage Power Unit.
1
2
3
4
1
Good neutralisation performance
Very fine fan-shaped air stream
2
Robust, industry-proof design
Easy and flexible mounting
3
Low air consumption
Low maintenance
4
Compact, also for complex installation situations
Shock-proof, finger-safe
Monitoring Highvoltage Power Supply
E3111 HV PSU with 5 – 5.5 kV output at 230V 50/60Hz or 115V 60Hz with 4 HV connections, monitoring of charge and contamination including an interface (for PLC connection)*
OEM HV Power Supply 2 Connections
E2100 HV PSU with 5 – 5.5 kV output at 115/230V 50/60Hz with 2 connections*
Highvoltage Power Supply 4 Connections
E3100 HV PSU with 5 – 5.5 kV output at 230V 50/60Hz or 115V 60Hz with 4 HV connections, monitoring of charge and contamination including an interface (for PLC connection)*
OEM HV Power Supply 1 Connection
E2100 HV PSU with 5 – 5.5 kV output at 115/230V 50/60Hz with 1 connection*
*The high voltage power supplies listed above also differ in load capacity, which defines the maximum cable length that can be connected: please refer to the detailed pages of the respective power supplies.
