Application
P-ER-VW: operating range up to 200 mm
A compact and robust ionising air nozzle with two heads and good performance for directed neutralization and light cleaning of small areas and objects also with low residual charges.

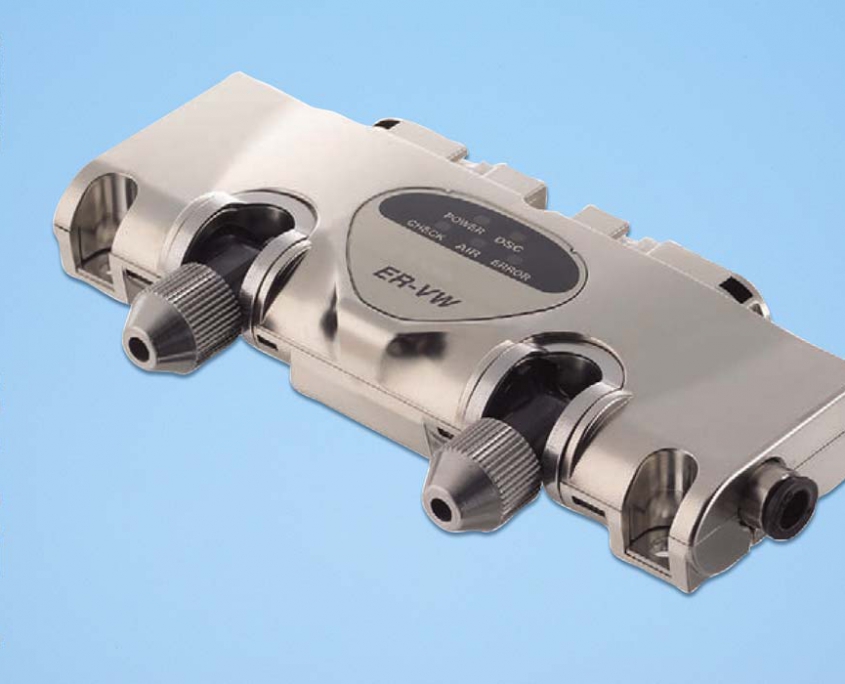

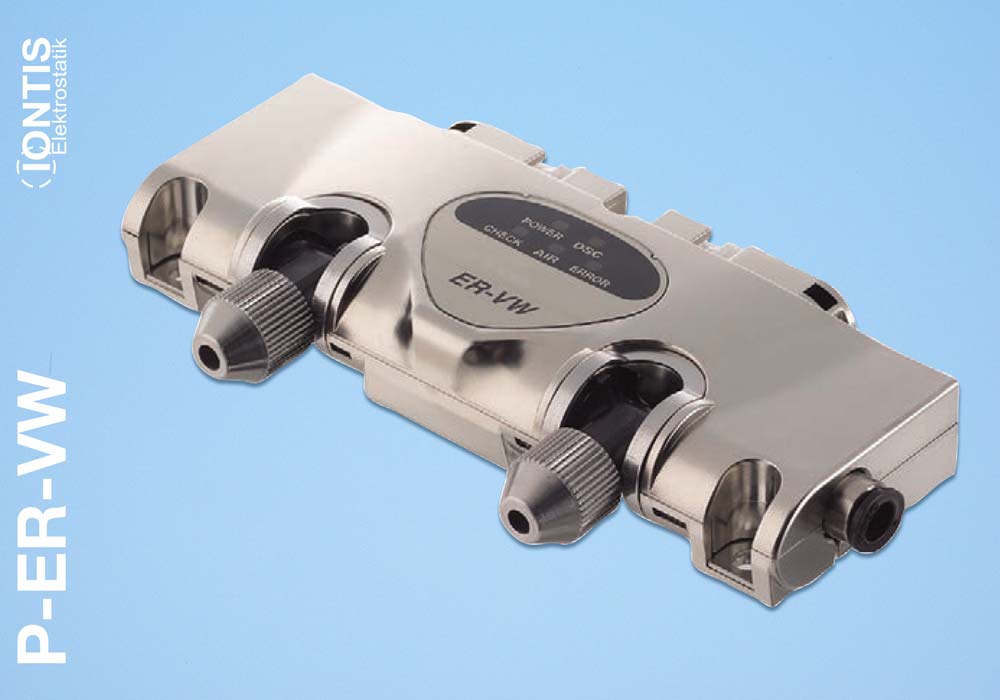

P-ER-VW Twinhead ESD Nozzle
The twin-headed Ionising Nozzle with high accuracy and low residual charges.
Specialities
The P-ER-VW is very low in maintenance, can be exactly pointed to the material due to rotatable nozzles. With highfrequency AC technology, it achieves a perfect ion balance of +/- 10V and thus well positioned for usage in sensitive production environments (electronic components etc.).
+49 7628 35 94 064
We gladly help you to solve your problem.
P-ER-VW Specifications
- Working range up to max. 200 mm
- Discharge performance: <1s/100mm distance
- Attainable residual charges: +/- 10 V

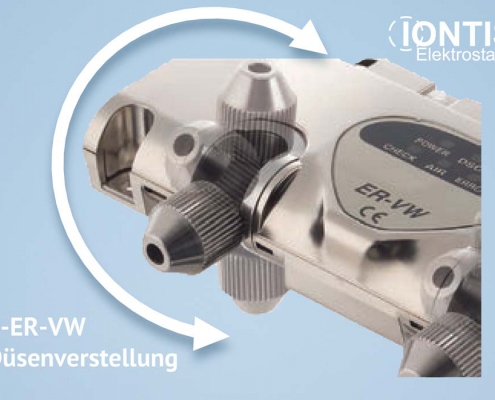

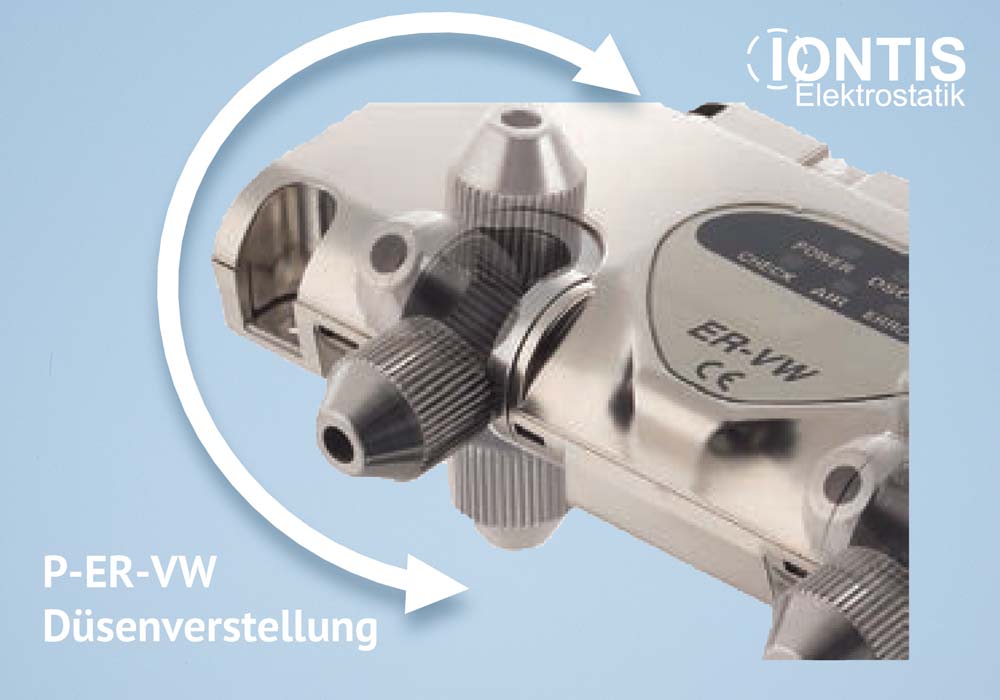

- 2 nozzles rotatable 190 degrees
- Extremly compact dimensions
- Power supply 24 VDC at 70 mA
- Integrated, powerful highvoltage generation
- Emitter integrated and protected in casing
- Air connection: 0,5 to 5 Bar max. at max. 60 l/min airflow
- Monitoring of air supply
- LED-Displays: operation, discharge, air supply, maintenance and malfunction

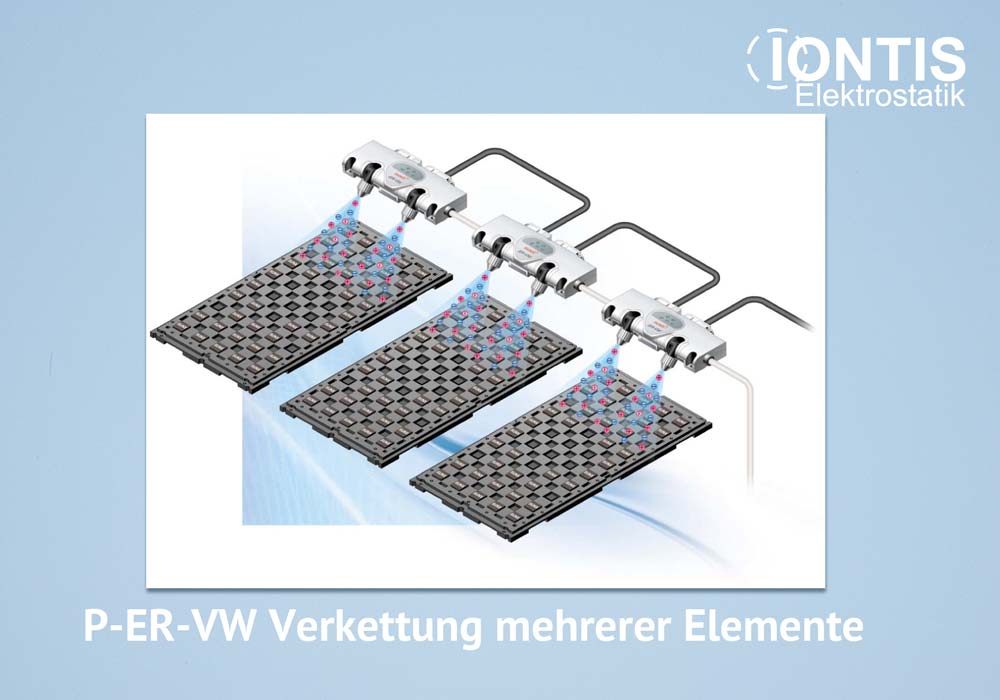

- Daisy-chaining of up to 5 units without separate air and power supply
- CE marking
1
2
3
4
1
Ultra-compact, also for tight and difficult installation situations
Variable & extendable
2
Low maintenance
Robust, industry-proof design
Easy and flexible mounting
3
Very good neutralisation performance with +/- 10 V residual charge
Low power consumption
4
Integrated monitoring and alert functions
AC Connection
Wide-range power supply 80-250 VAC with 5m feed cable
Supply cables 24VDC
2, 5 or 10m cable for connection to 24 VDC Anschluss an 24V DC operating supply
