Application
E3412-L Operating Range 120 – 600 mm
An extremely compact and due to reactive adaptation highly efficient ionising bar with very good performance.

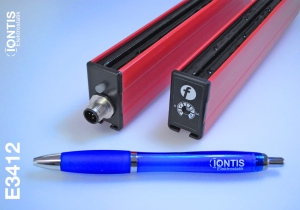

E3412-L Reactive Highperformance Bar
The most compact and intelligent anti-static Bar for distance.
Specialities
The E3412 adapts it’s ionising strength to the charge of the material due to a sensory mechanism. It is available in 2 versions: E3412 F=Fast for very high web speed up to 1500m/min or E3412 L=Long for discharge ranges between 150 and 600 mm e.g. for applications with objects with varying geometries.
+49 7628 35 94 064
We gladly help you to solve your problem.
E3412-L Specifications
- Distance F: 30-150mm, L: 150-600mm
- Length up to app. 5000 mm
- Power Supply 24 VDC at 1,5 A
- Integrated performant high-voltage generation
- Reactive adjustment to crude charge via sensory mechanism
- Automatic or manual mode
- Resistively coupled emitters for safety
- Tungsten emitter tips protected against impact
- All highvoltage parts integrated and encapsulated
- LED-Display of operation, maintenance need or malfunction
- Analog output with M12 Pin connector
- CE, UL and CB cert.
1
2
3
4
1
Compact ionising bar in 2 versions to address specific needs
Low power consumption, no air needed
2
Robust, industry-proof design
Easy mounting
3
Integrated operation monitoring
Low Maintenance
4
Very efficient neutralisation due to self-adjustment and strong performance
Shockless, finger-safe
AC Connection
Wide-range power supply 80-250 VAC with 5m feed cable
Supply cables 24VDC
2, 5 or 10m cable for connection to 24 VDC Anschluss an 24V DC operating supply
Mounting Set
Set with mounting plate, with bolt and nut
