Application
For the visualisation and recording of the measured charge signals supplied by the Field Sensor EFM113B and/or Ionising Bar E5000 during the operation.

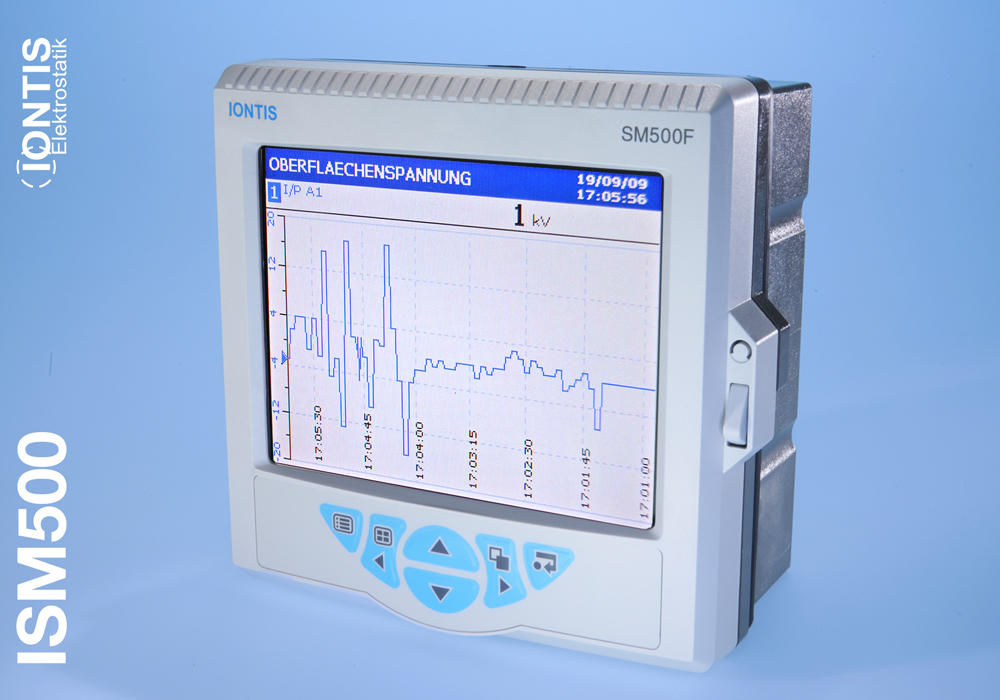

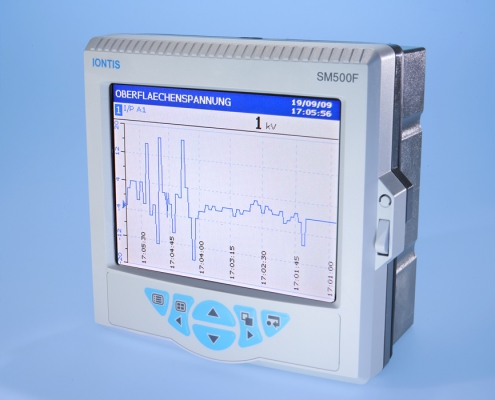

ISM500 Static Monitor Data Recorder
The compact field monitor processes sensor and bar signals at the machine.
Specialities
The Static Monitor Data Recorder ISM500 is a robust device to display and record the data at the location, on SD-memory cards allowing also the analysis and/or archiving later.
The «scope of delivery» also consists of the complete configuration of the device in our factory according to the customer specification, so the customer finally gets a plug-and-play solution.
+49 7628 35 94 064
We gladly help you to solve your problem.
ISM500 Specification
- 5,7 inch colour TFT display
- Standard: 1 galvanically insulated analog input (optionally up to 4)
- Diverse display-options: e.g. curves or data
- Relay output, configurable
- Recording/saving data on SD cards (e.g. for analysis in Excel etc.)
- 6 soft-buttons for menu and operation
- Robust plastic case
- Dimensions 144 x 144 mm
- Universal mounting options
1
2
3
4
1
Small and robust
2
Easy to operate and bright display
3
Flexible mounting options
4
Manifold configuration options
Data recording over long periods also on SD cards
Additional I/O Channel
Retrofittable interface card with 1 additional channel for further sensors or electrode signals
Network Interface
Retrofittable interface card TCP/IP Ethernet for communication via a LAN
Additional Doppel-Relais-Kit
Upgradeable interface card with additional relay outputs for alarms etc.
Connection Cable
Cables in diverse length to connect antistatic bars, sensors etc.
