Application
EFM113B: installation distance typically 150mm but can be varied
For the stationary automatic measurement of field strength i.e. amount of static charge of material surfaces.

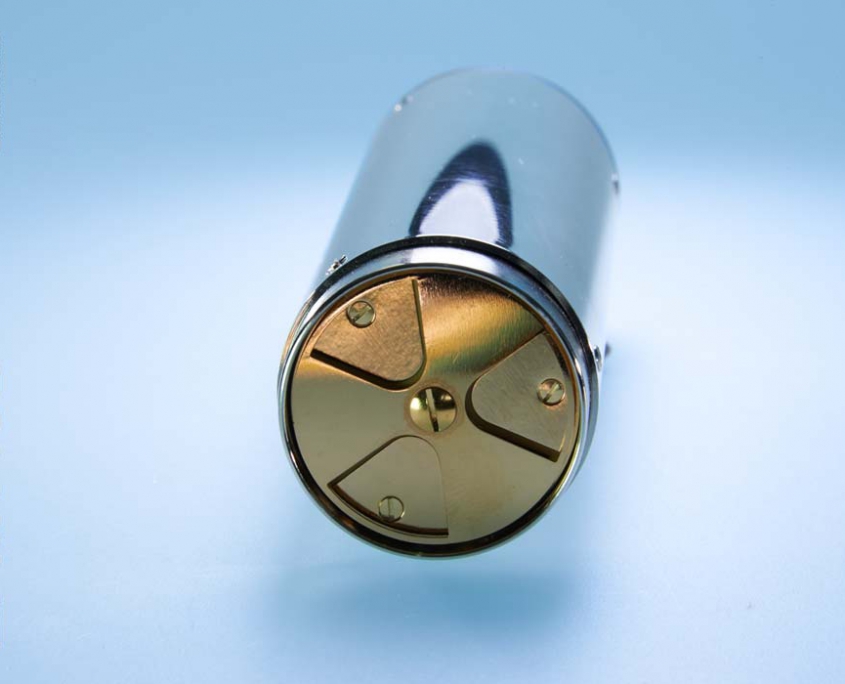

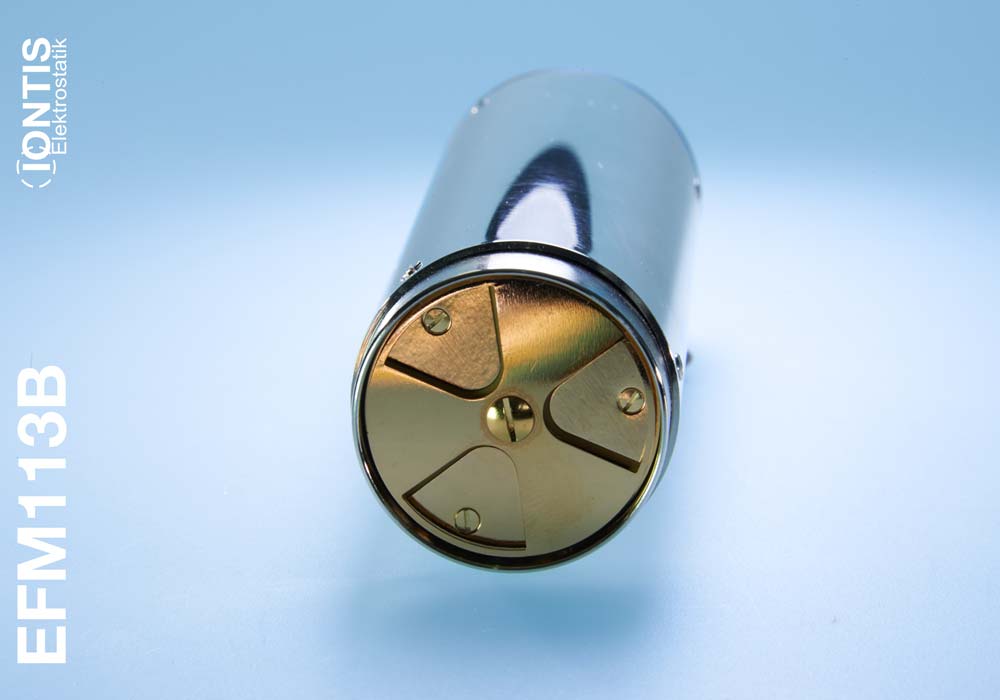

EFM113B Precise Field Strength Sensor
The easily installable Sensor for accurate measurement of surface charge.
Specialities
The Sensor EFM113B measuring field strength, is a very small but very accurate field strength sensor which supplies the results as analog signals and thus can be used to record or control ionisers or processes in the production flow.
Especially suited to control the E5000 Anti-Static Bar. For visualisation and recording also easily connectable to ISM500 Data Monitor.
+49 7628 35 94 064
We gladly help you to solve your problem.
EFM113B Specification
- Measurement distance typically 150 mm
- 4 measurment ranges up to 200 kV
- Output: +/- 1mA
- Power supply: 9-15 V DC
- Gold-plated stainless steel sensor, calibration with 200×200 mm plates
- Potentiometer to adjust zero balance
- Only 120 x Ø 36 mm in dimension
1
2
3
1
Low maintenance
2
Robust, industry-proof design
Easy mounting
3
Very precise
Very compact
Homogenising Plate
Homogenising plate for even more accurate measurement for high charges and large areas
Signal Converter
Converts EFM113B electrical output to 4-20mA/0-10V signals for easy connection to a process controller.
