Application
F2010: operating range up to 800 mm
A powerful ionising air blower for neutralisation and cleansing at long distances and of large areas in automated production.

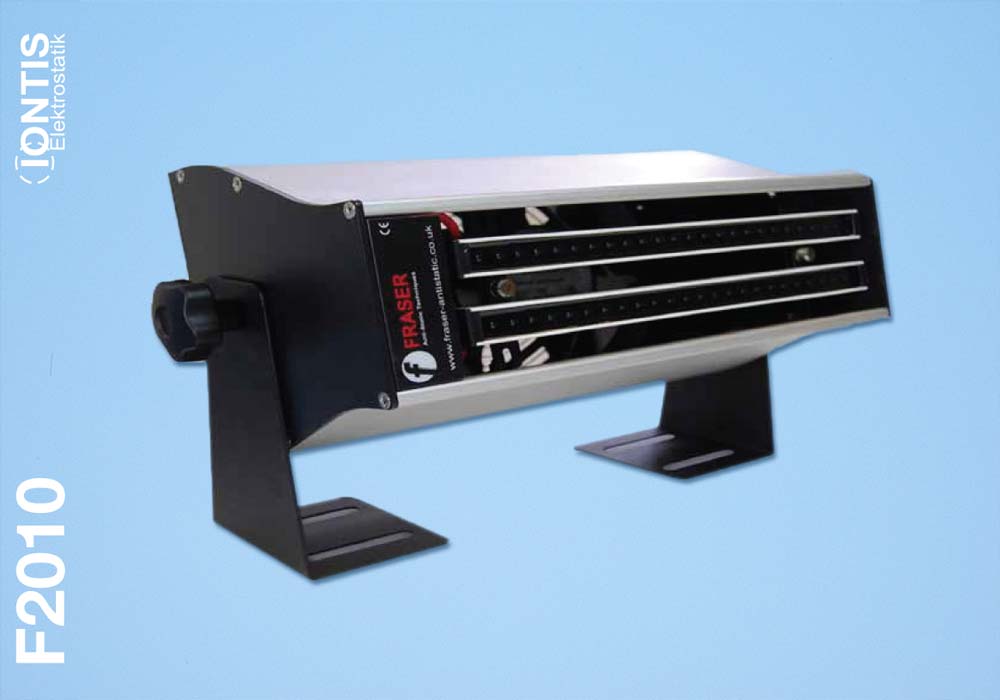

F2010 Ionising Power Blower
The powerful Ion Blower with 2 integrated bars for industrial applications.
Specialities
The F2010 is extremely powerful and with the two (!) integrated E3010 ionising bars able to achieve strong and fast neutralisation. The highvoltage generation is already integrated into the case – the blower provides a good cleansing effect.
+49 7628 35 94 064
We gladly help you to solve your problem.
F2010 Specification
- Working range up to max. 800mm
- Available length 305mm, then 500mm up to 2000 mm in 250mm steps
- Power Supply 230 V AC
- Integrated, powerful highvoltage generation
- 1-axial blower components with 250 mm width each
- Discharge performance: <1s/100mm distance
- Airflow adjustable up to 5’600 l/min each blower
- Blow angle app. 15 degrees
- Neutralisation through two E3010 ionising bars
- High-resisitively coupled emitters
- Robust aluminium case
- Electrodes can easily be dismounted for maintenance via front
1
2
3
4
1
High air volume and large fanshaped distribution
Powerful and fast also for fastmoving objects
2
Low maintenance
Easy and flexible mounting
3
Shock-proof design
Robust, industry-proof design
4
Very large surfaces up to 2,5 m possible
Optional Air Filter
Additional air filter that can be mounted on back of device to filter dirt during suction
