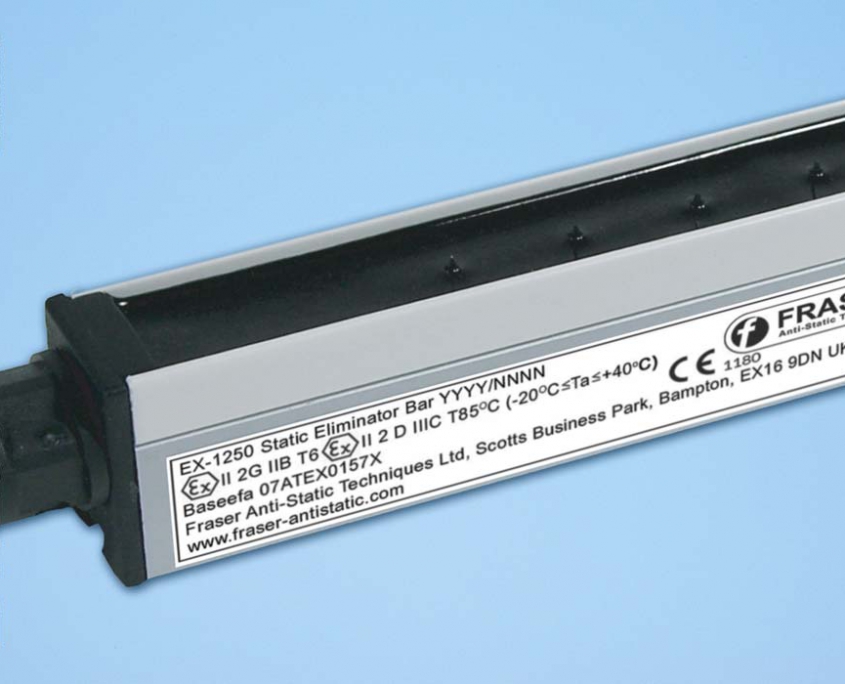

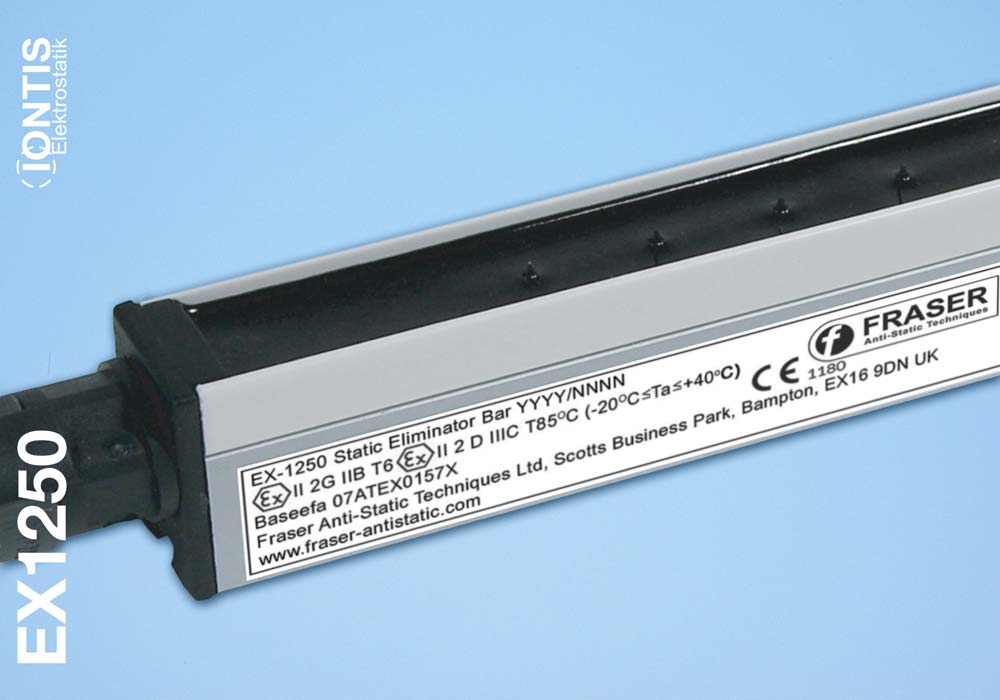

The standard anti-static bar for short distances in ex-hazardous areas.
Arbeitsbereich: 20 – 100 mm
A quite powerful, robust anti-static bar for the ex-hazardous gas- and dust area with good performance. ATEX EX II 2G IIB T6 & EX II 2D IIIC T85°C
The EX1250 is washable, can be used in the standard edition up to 100mm distance and extended with air-bar option to 500 mm working range for applications with varying distances/ geometries or to keep areas anti-static and dust-free.
Certification EX II 2G IIB T6 & EX II 2D IIIC T85°C
Length, everything from 120 to max. 4000 mm
Power supply 5-6kV
Emitter with 15mm distance and high voltage-resistant conductors
Case: anodised aluminium
Encapsulated with epoxy resin
Shielded nylon cable with 3m* (longer on rqeuest) with bending radius of 70 mm
Mounting slot on the back of the case
*Please ensure sufficient cable length because the matching power supply unit must be located OUTSIDE OF the hazardous area! Please note: this is an AC bar, differing from a 24V DC powered ionising bar and requires necessarily an additional external AC Highvoltage Power Unit.
Robust, industry-proof design
Robust electrode with uniform discharge
Variant Ellbow Connection

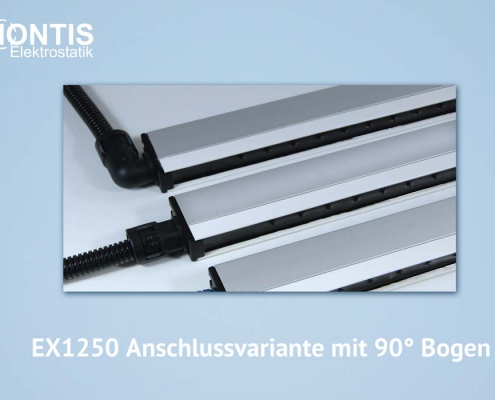

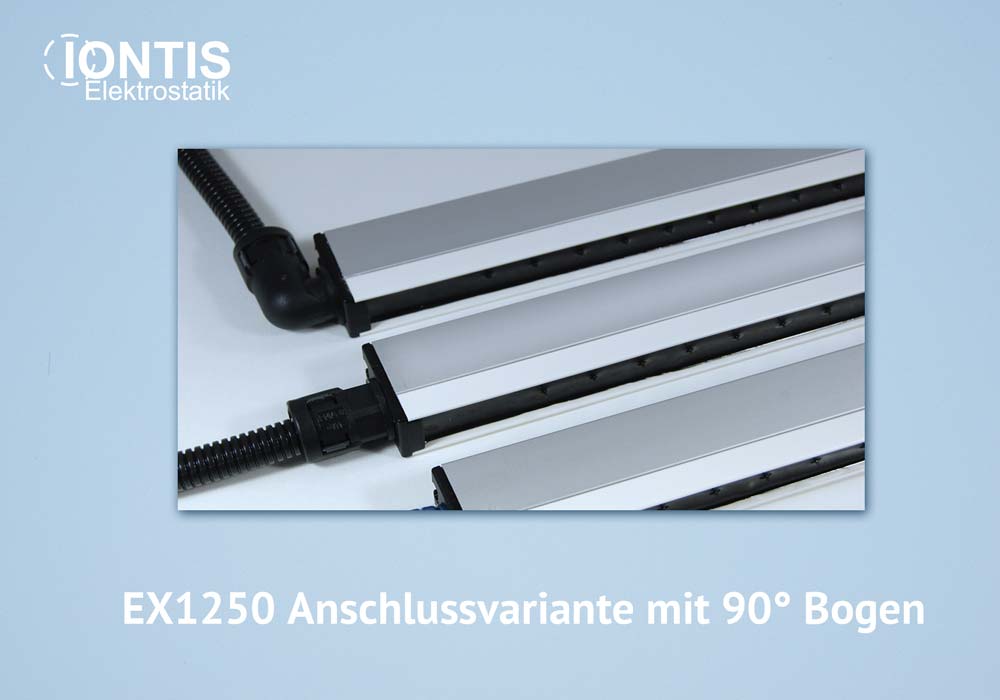

Variant EX1250 with 90° angle cable outlet
The EX1250 can also be ordered with a curved connection to suit certain installation situations. Otherwise the product properties remain unchanged.
Option Air Support
With the optional air bar, an air flow of approx. 2 m/s can be generated through the use of slightly compressed air, which transports the ions to the target area faster, further and in a more distributed manner. This means that changing distances (e.g. winding / unwinding) or 3D geometries (parts on a conveyor belt) can be unloaded more easily and efficiently. A limited cleaning effect can also occur with the air flows.
These air ducts can also be easily retrofitted and extend the operating range to approx. 500 mm and achieve a moderate cleaning effect.
Monitoring Highvoltage Power Supply
E3111-EX HV PSU with 5 – 5.5 kV output at 230V 50/60Hz or 115V 60Hz with 4 HV connections, monitoring of charge and contamination including an interface (for PLC connection)*
Highvoltage Power Supply 4 Connections
E3100-EX HV PSU with 5 – 5.5 kV output at 230V 50/60Hz or 115V 60Hz with 4 HV connections, monitoring of charge and contamination including an interface (for PLC connection)*
