Application

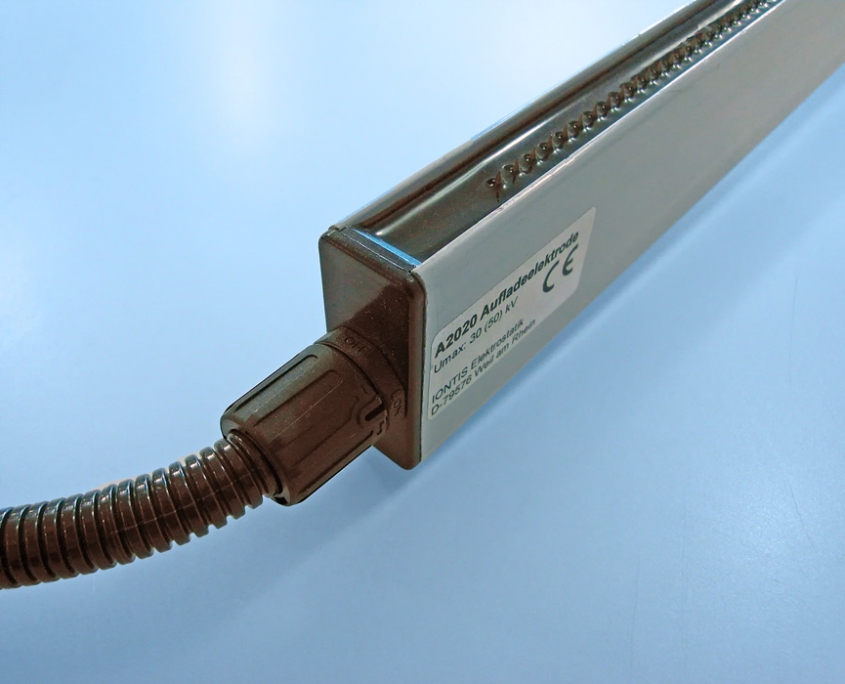

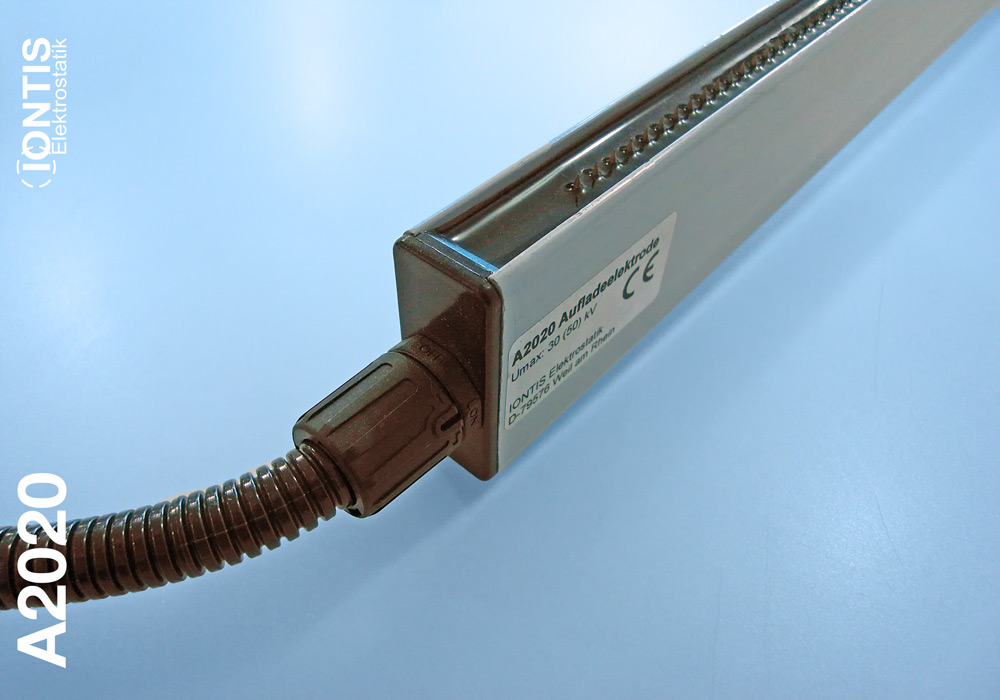

A2020: operating distance 10 – 25 mm
A charging bar with quite homogeneous charge generation for up to 25 mm distance to the material at 30 kV and very compact dimensions.
The Workhorse Charging Bar for standard use cases with homogeneous field.
A2020: operating distance 10 – 25 mm
A charging bar with quite homogeneous charge generation for up to 25 mm distance to the material at 30 kV and very compact dimensions.
The A2020 is identical in construction to the A2010, with the exception of a tighter emitter pitch of only 5 mm (!) leading to a very homogeneous material charge even for fast moving web.
+49 7628 35 94 064
We gladly help you to solve your problem.
* Depending on material and expected adhesion affect
**The bar can be operated with up to 60 kV but in which case it needs to be mounted with specific isolators, the best is you consult us.
Variant Cable Exits

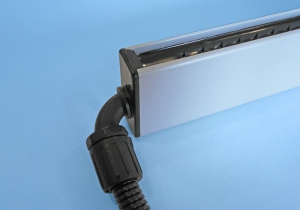

The A2020 comes with a straight cable outlet as standard, but is also available with a lateral 90° angle or even a connection on the bottom.
High-performance Generator 60kV
A760150 High-performance Generator 60kV with display/control unit to control output from 0-60 kV with 150 Watt 0-2,5 mA; interface for remote control
Highvoltage Generator 30kV (24V oder AC)
A7320 Highvoltage Generator 30kV with analog interface for PLC integration and control of output for 0-30 kV and 20 Watt 0-1 mA
Ultra-compact Highvoltage Generator 30kV
A1230 Highvoltage Generator 30kV with display/control unit and interface for PLC integration and control of output for 0-30 kV and 8 Watt ca. 0-1 mA
High-performance Generator 30kV
A730150 High-performance Generator 30kV with display/control unit to control output from 0-30 kV with 150 Watt 0-5 mA; interface for remote control
OEM Highvoltage Generator 30kV (24V oder AC)
A7333 OEM Highvoltage Generator 30kV only with analog interface for PLC integration and control of output 0-30 kV and 30 Watt 0-1 mA
